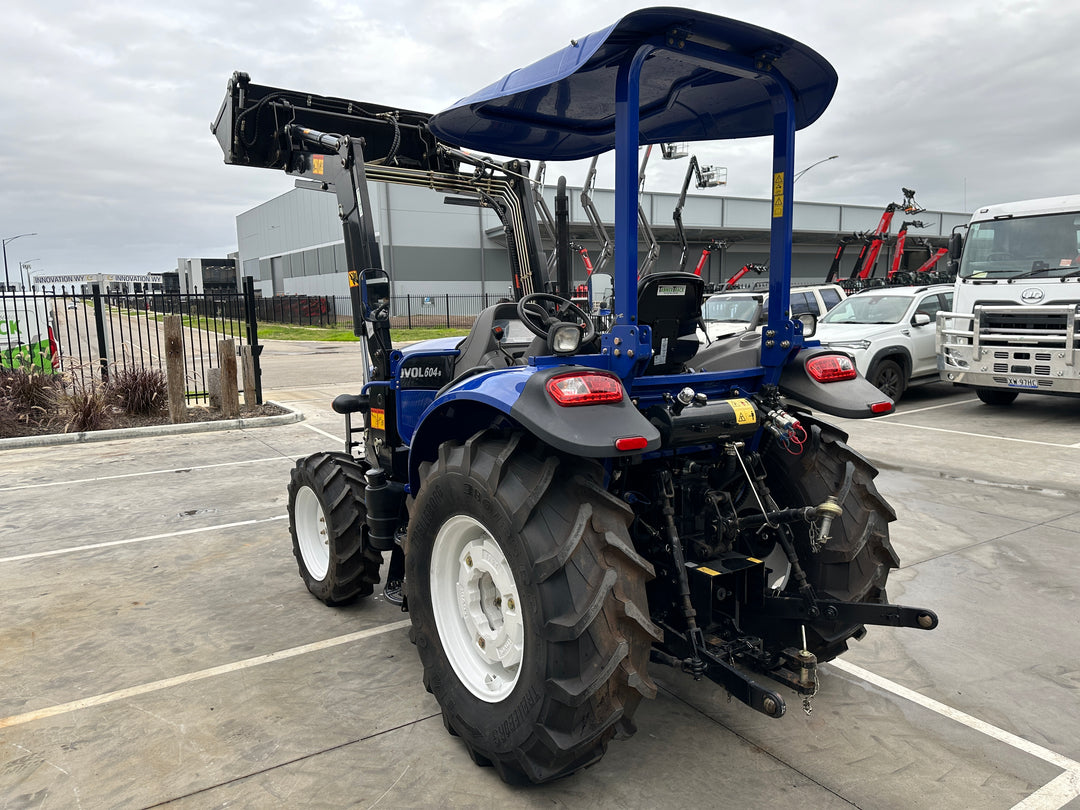

Lovol M504 TB-1, 50hp Rop's Tractor

Lovol M504 TB-1, 50hp Rop's Tractor

Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M504 TB-1, 50hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor
Lovol M604, 60hp Rop's Tractor

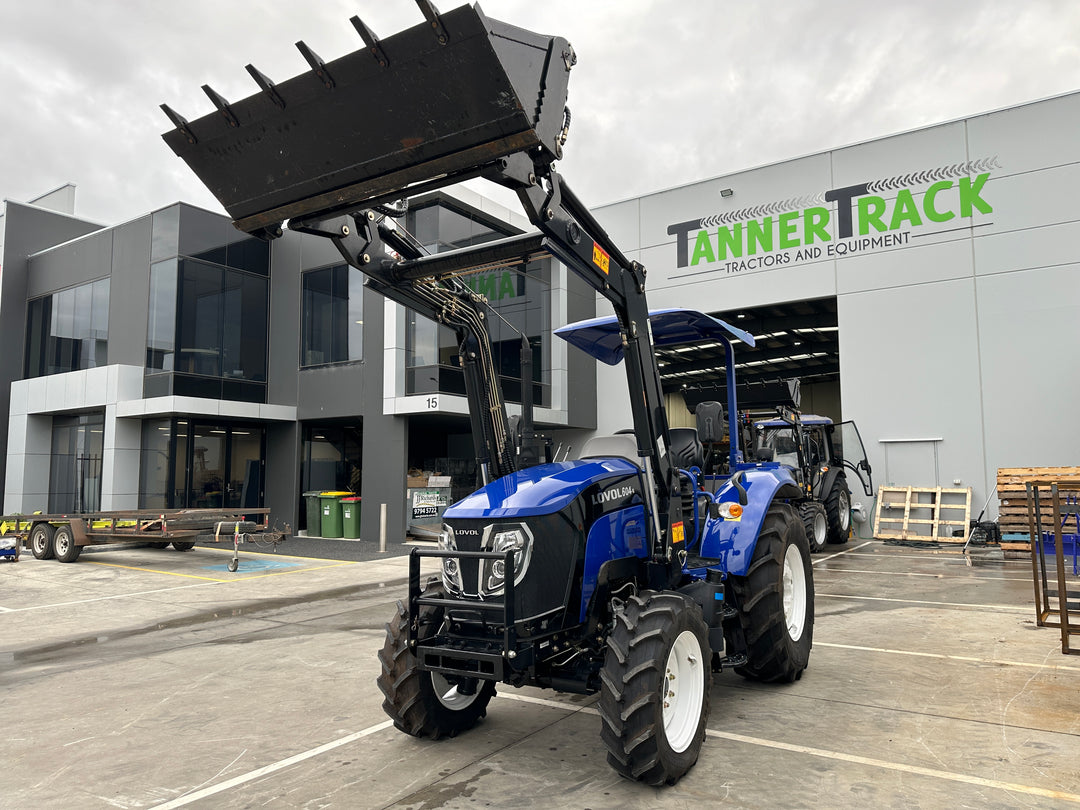

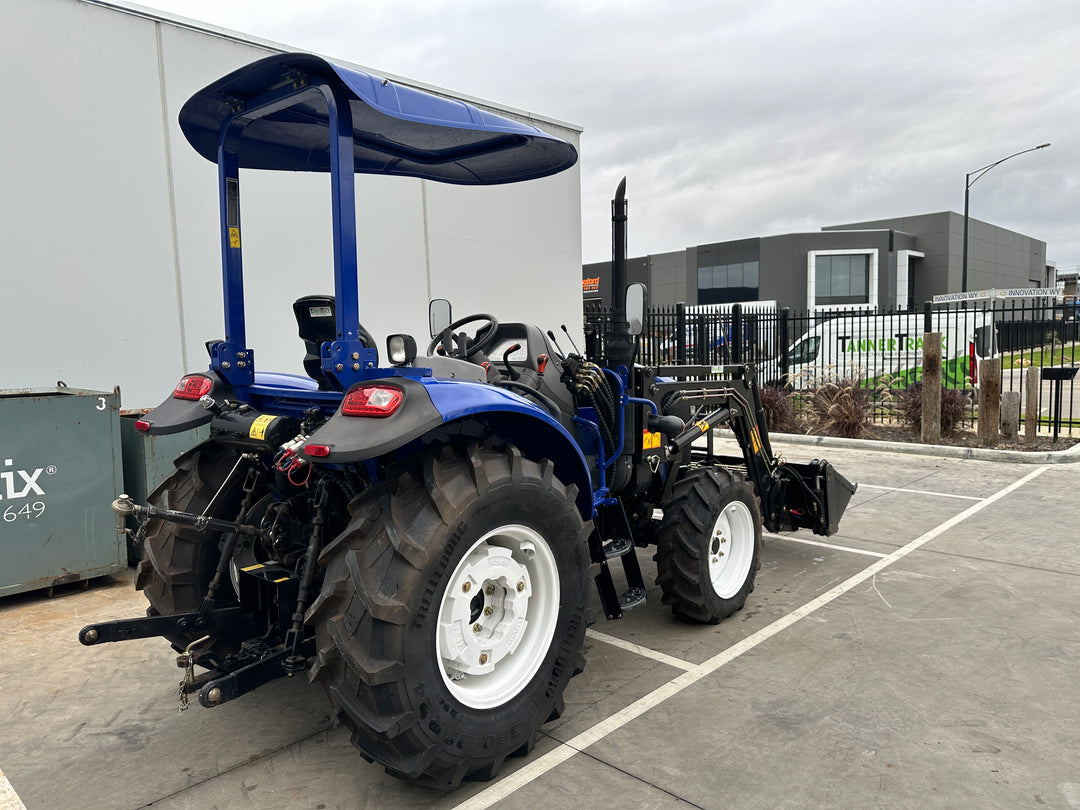

Lovol M504 TB-1, 50hp Rop's Tractor

Regular price$31,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

Contact Us

Download Lovol Brochure Here

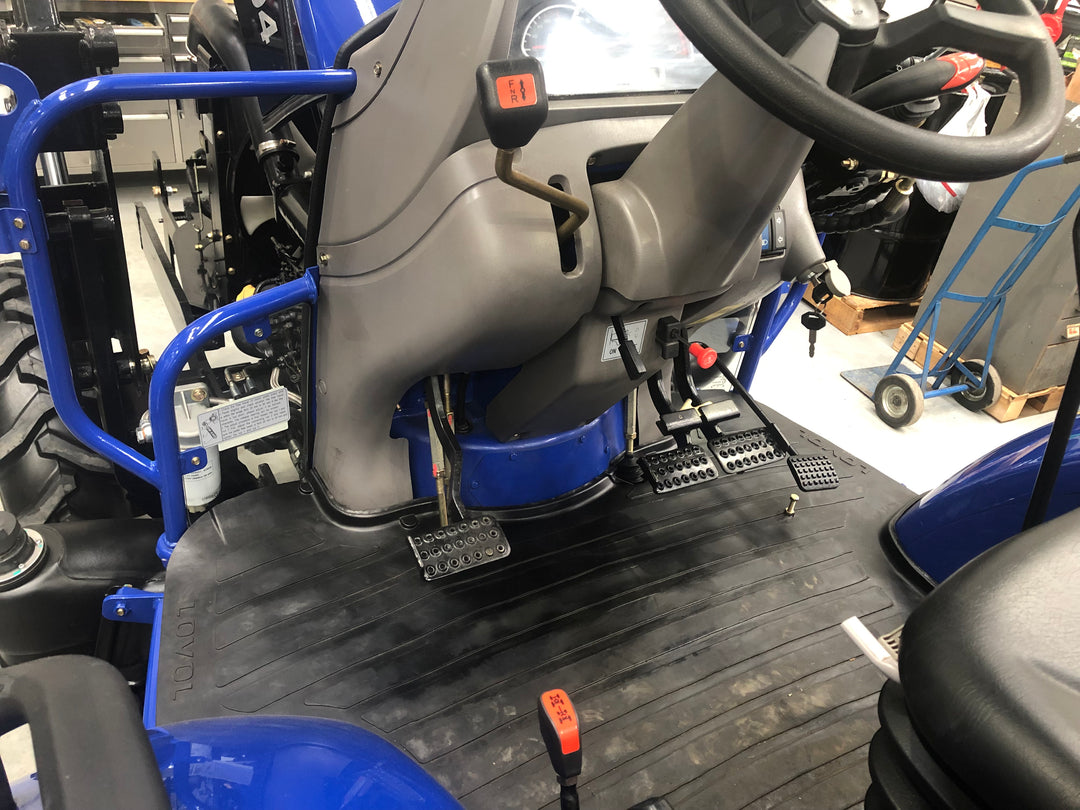

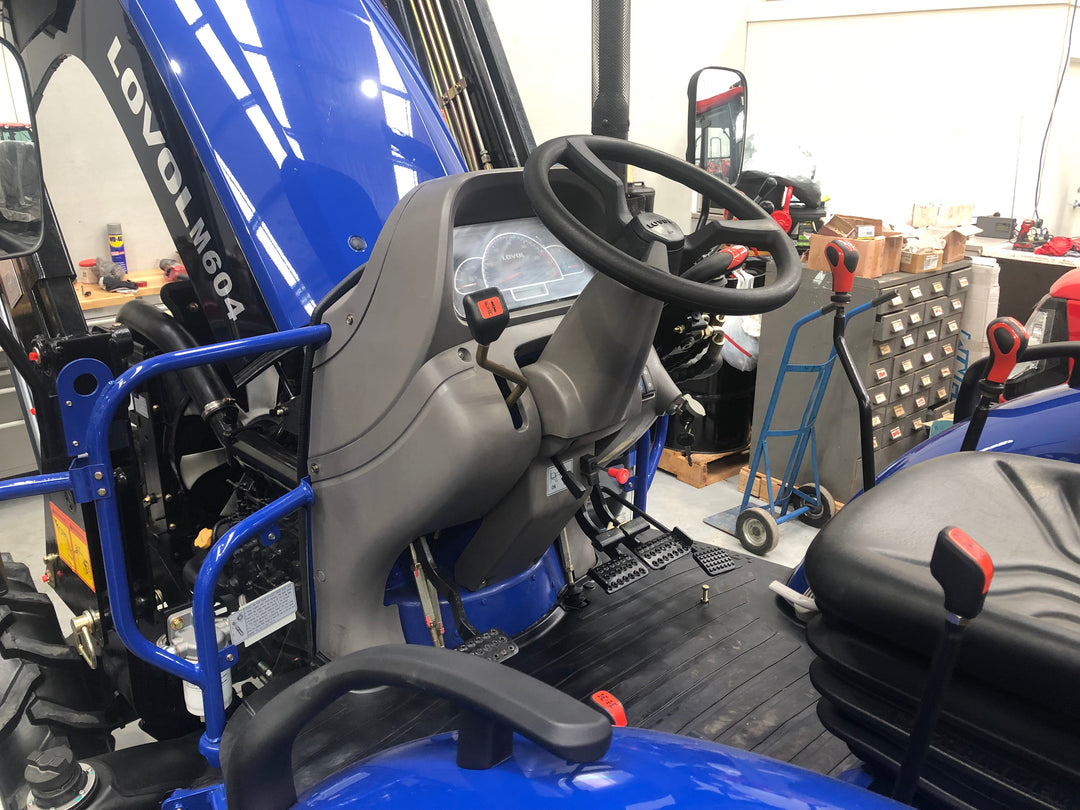

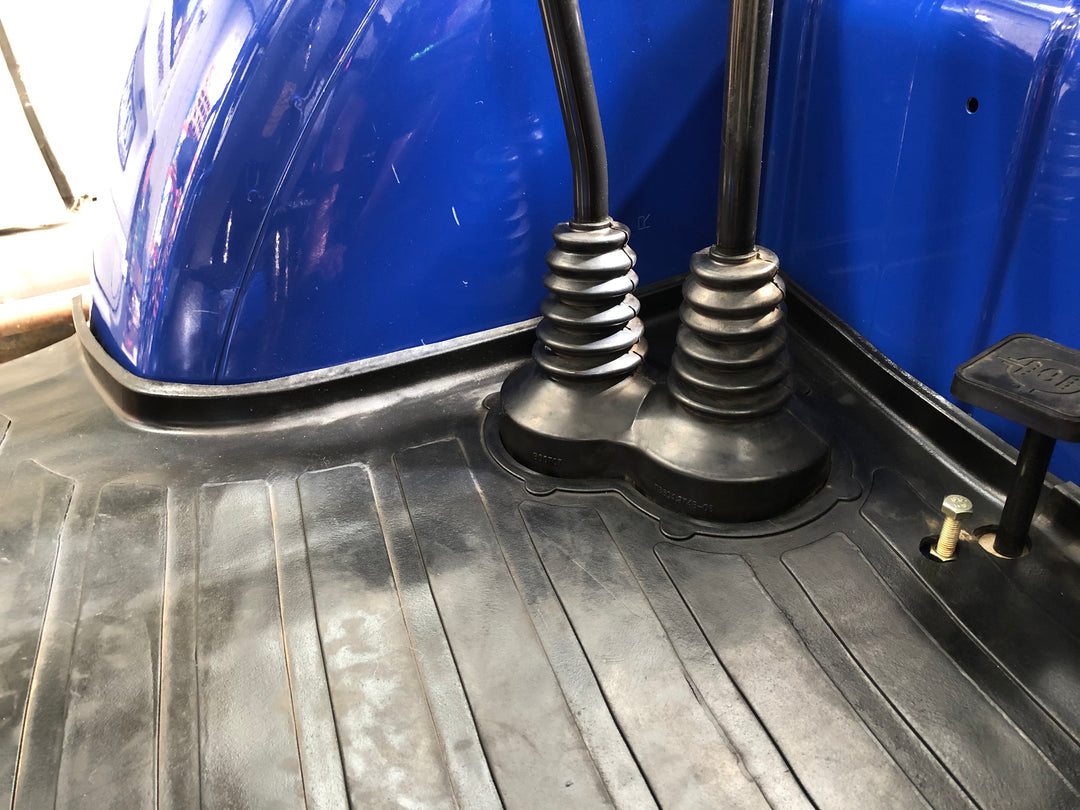

In Stock NOW is our NEW Range of Lovol tractors ranging from 35-80hp. Come on down and inspect these top quality Tier 1 tractors. With their attention to detail from molded floor mats to very friendly joystick controlled front end loader and a top quality Gammer seat you can be sure you will be very happy in the new Gen-3 designed cabin with its heater/Aircon and very well insulated cabin. But it doesn’t stop there they have paired this long lasting and proven engine with a 12 speed synchromesh gearbox, rear remotes, dual element air cleaner and many more great features. The quality in these tractors is outstanding and an inspection is a must!! Call us now to find out more! Attachments available and in stock – Backhoes – Post Hole Diggers – Augers – Rippers – Slashers – Tow Bars – Bale Spears – Pallet Forks – Wood Chippers & More!!

Key Features

  • 11inch Ceramic plate clutch with cushion springs
  • Syncromesh Gearbox
  • Dual rear remotes
  • Dual wheel weights
  • Quiet Exhaust

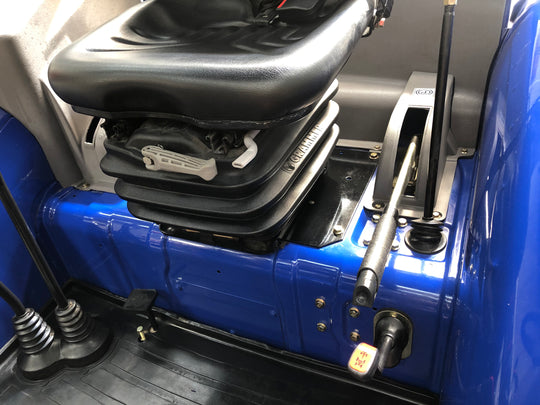

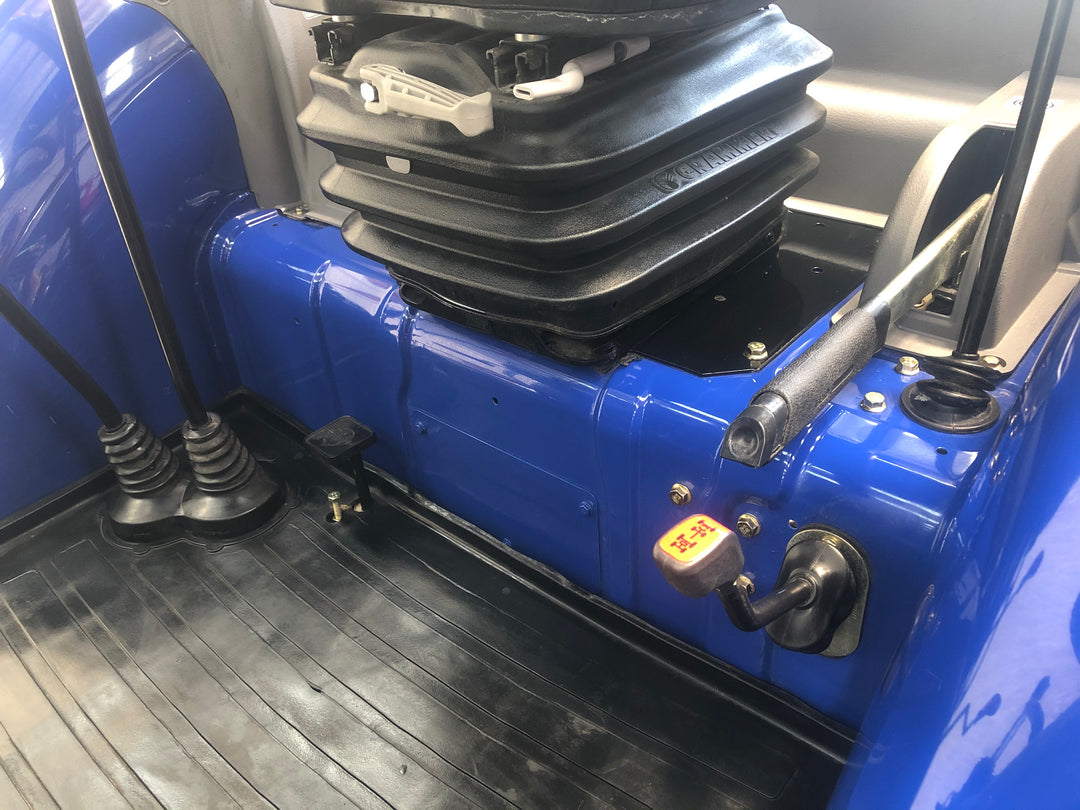

  • Gammer Seat
  • Sealed Wiring Looms
  • Radial Tyres
  • 3 Year Warranty

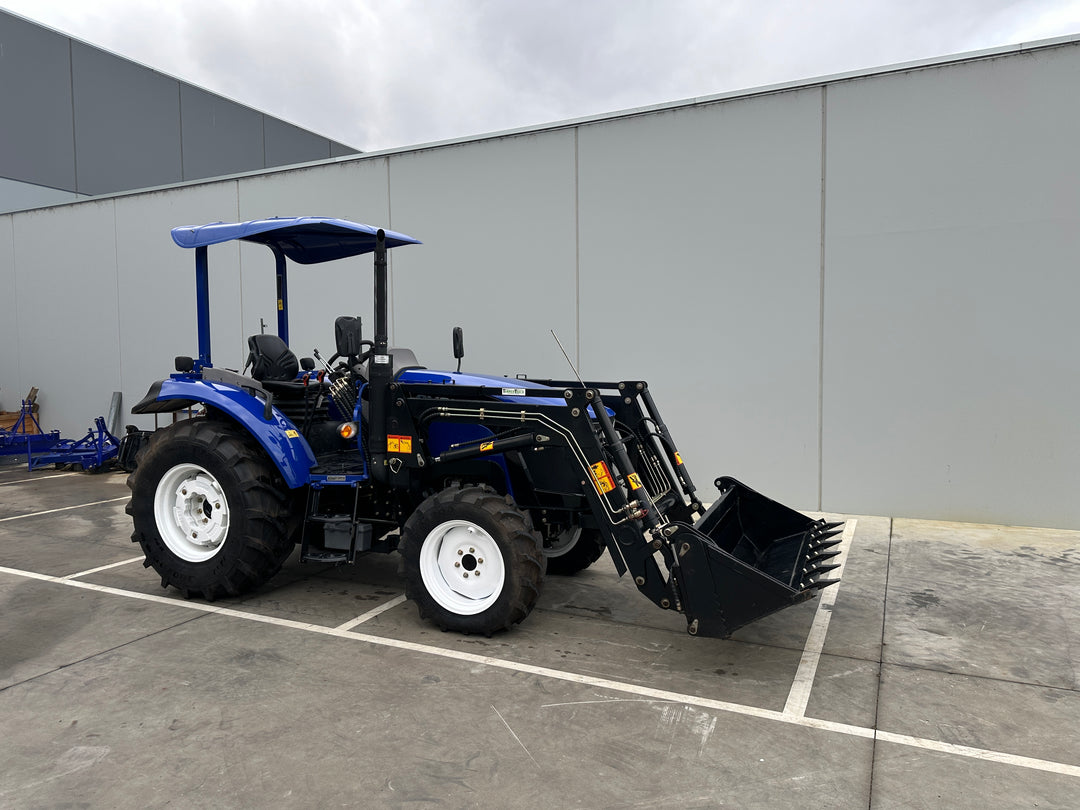

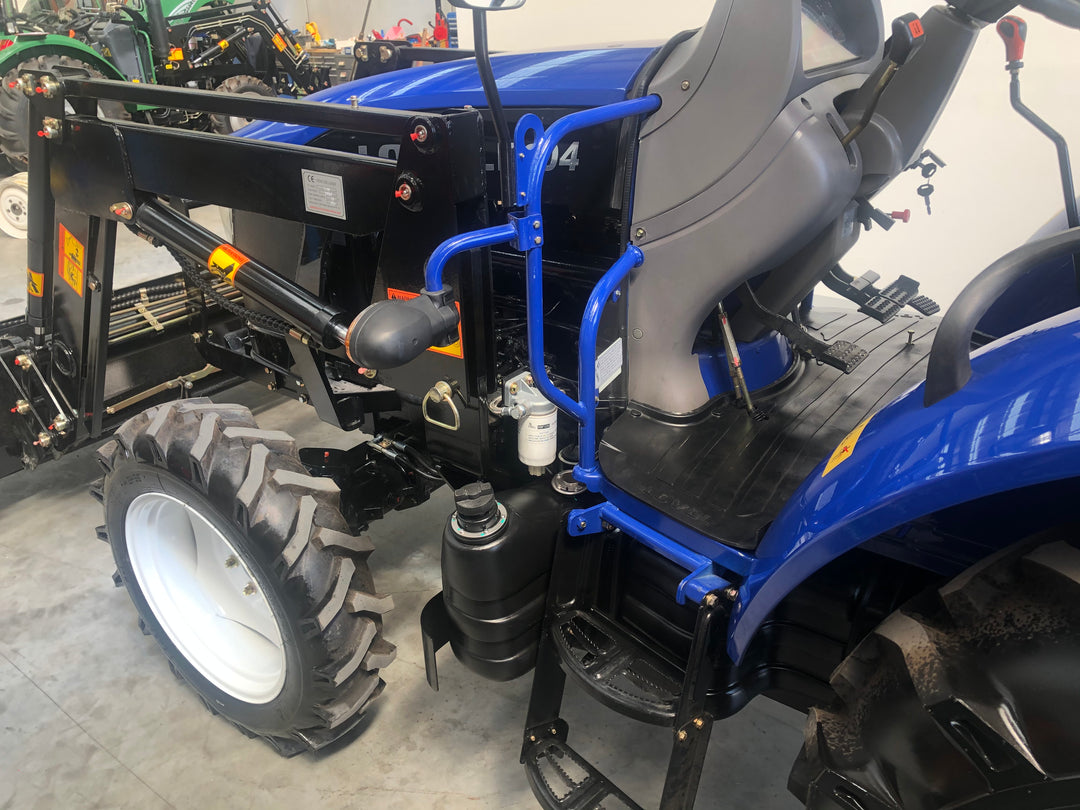

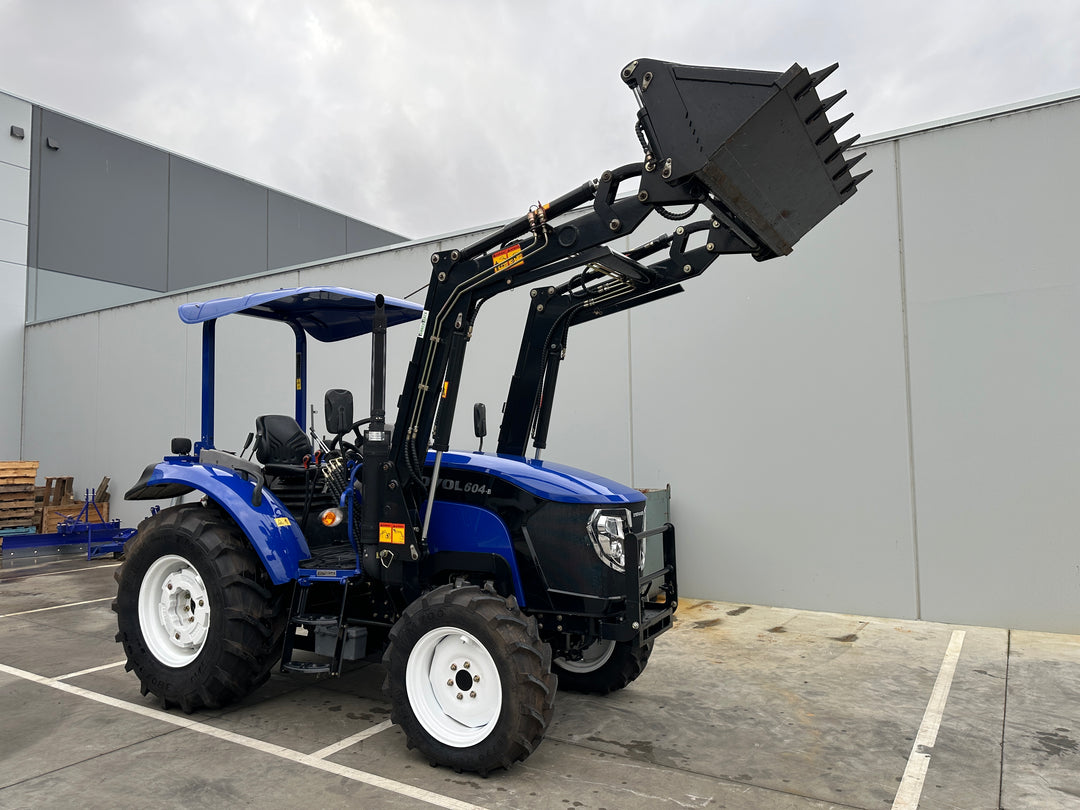

  • 600kg SWL Front end Loader

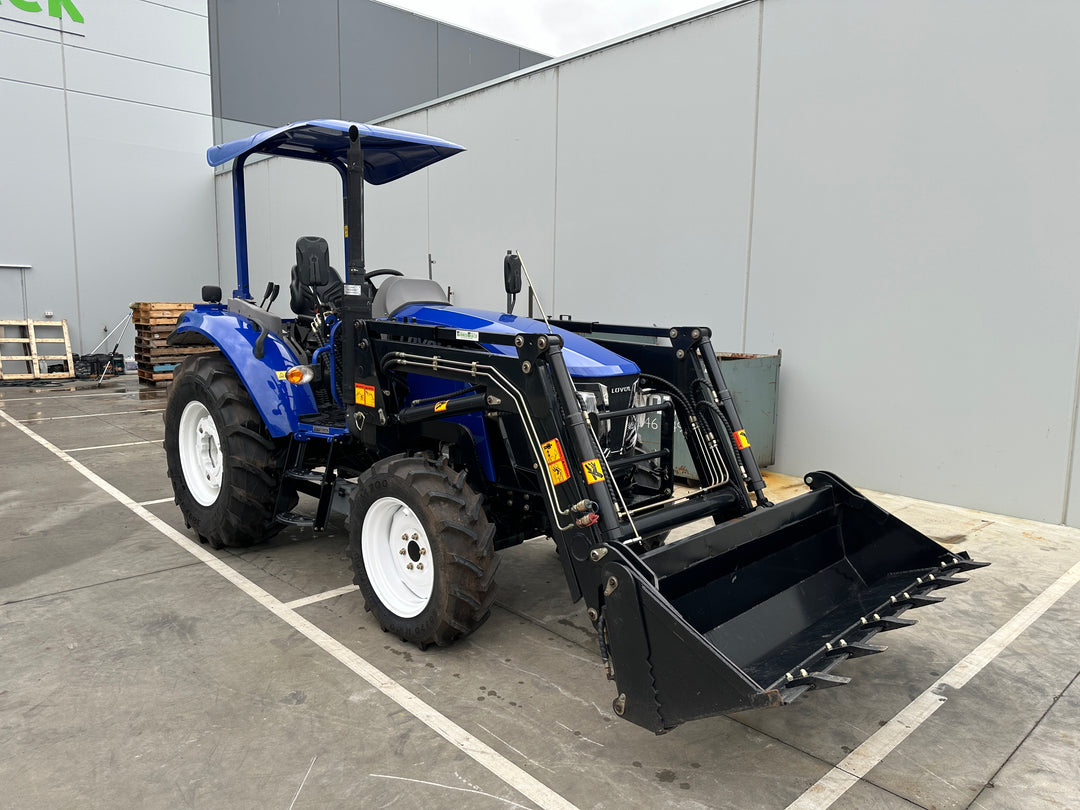

  • 4in1 Euro Mount Quick Hitch Bucket
  • Gen III Design with Quality Finishes
  • Genuine LOVOL Tractor



 Compare the Lovol M604 Specs with other tractors and see for yourself how well they stand up against the competition.


Model


M604 Cabin

M604 Rops

Engine Gross Power

HP(kw)

59(44)

59(44)

Rated Revolution

rpm

2400

2400

PTO HorsePower

HP(kw)

50 (37.5)

50 (37.5)

Type


Natural

natural

No.of Cylinders


4

4

Total Displace

cc

4087

4087

Bore&stroke

mm



Combustion System


DI

DI

Battery

Ah/h

100

100

Cooling System


Coolant/Water

Coolant/Water

Capacity

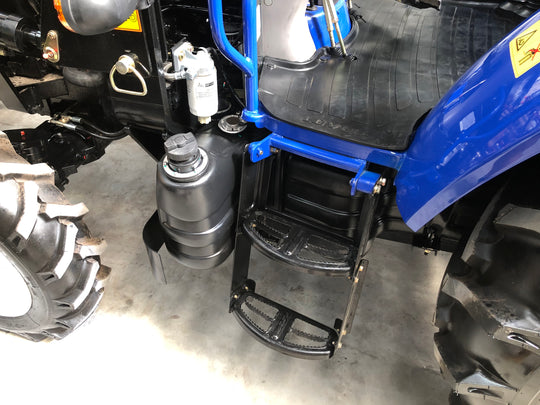

Fuel Tank

L

60

60

Engine Crankcase(Included Filter)

L

9

9

Engine Coolant

L

10.75

8.75

Transmission Case

L

27

27

Support of Front Axle

L

7

7

PTO

Maximum PTO Power

HP

50

50

Rear PTO


6 Spline

6 Spline

Type


dual speed

dual speed

Revolution

rpm

540/540E (760)

540/540E (760)

Hydraulic

Steering


hydraulic

hydraulic

3 Point Lift Control Type


draft/position

draft/position

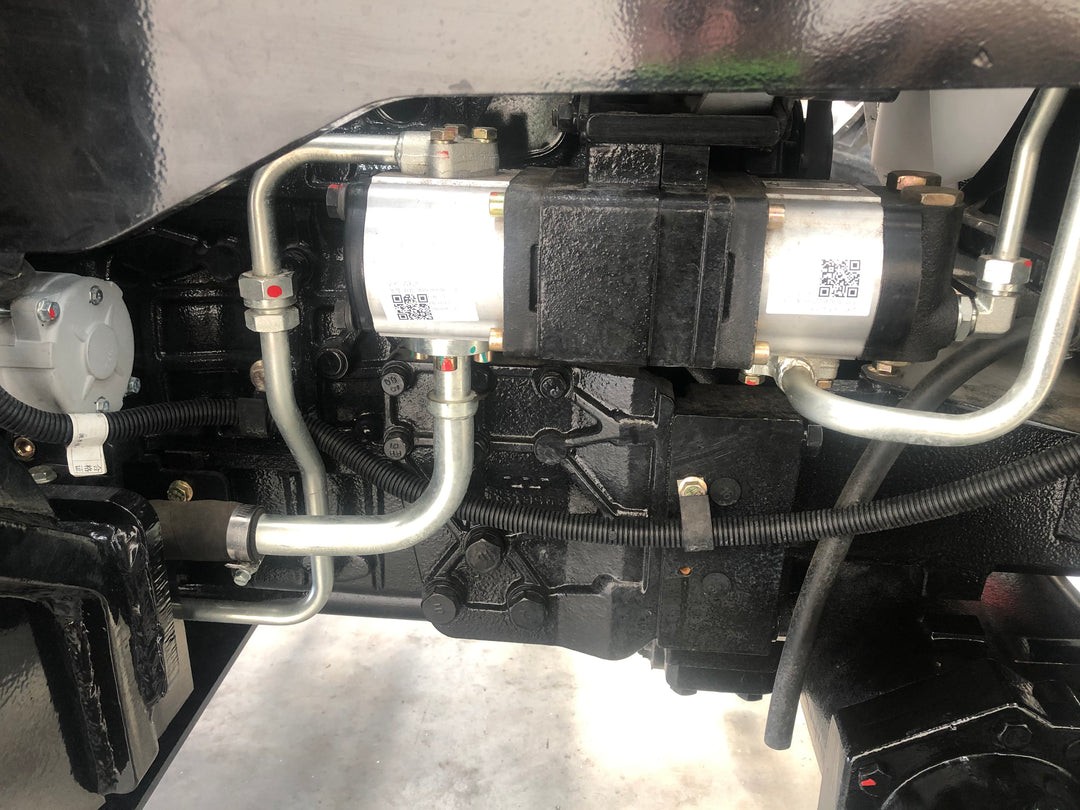

Implement Pump

L/min

40

40

Power Steering Pump

L/min

13

13

Total Hydraulic Flow

L/min

53

53

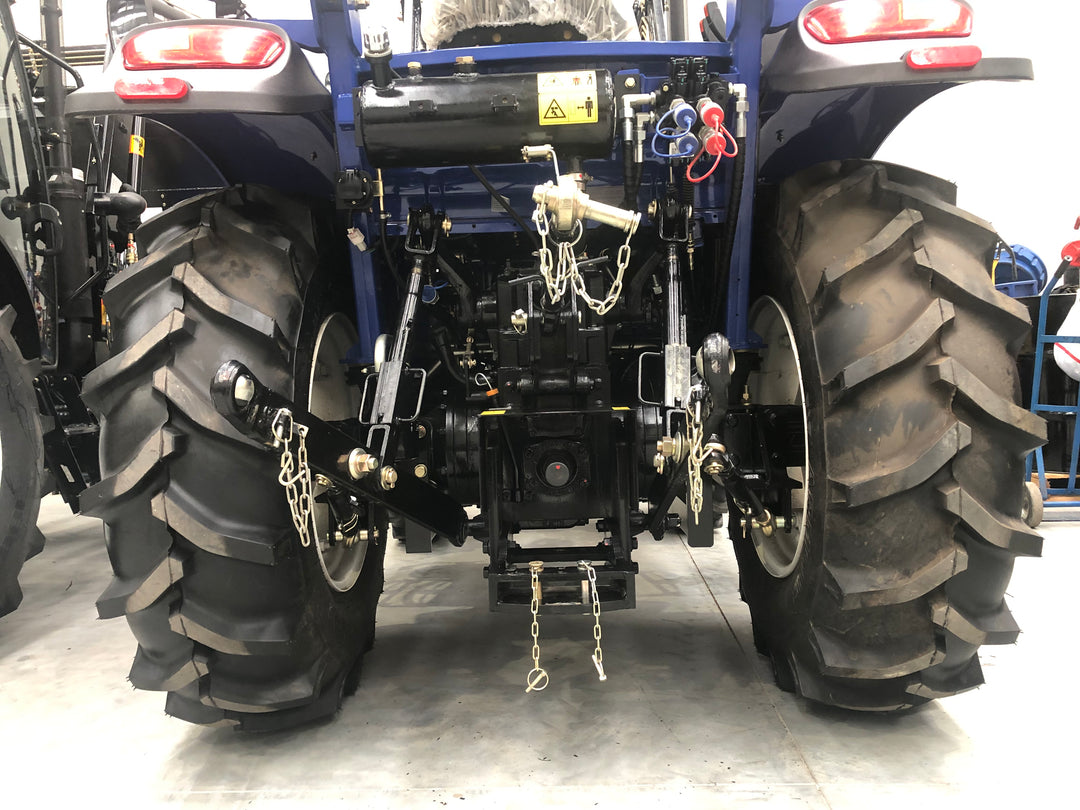

3-point Hitch Type


cat II

cat II

Lower Link Type


hinge

hinge

Check Link Type


lever

lever

Top Link Type


hinge

hinge

Lift rod type


thread

thread

Lift capacity at lift point

KN

2,294 kgf

2,294 kgf

Lift capacity at 24 in.behind lift point

KN

1,428 kgf

1,428 kgf

Drawbar type


swing

swing

Max. Trailer Loading Weight

kg

6000

6000

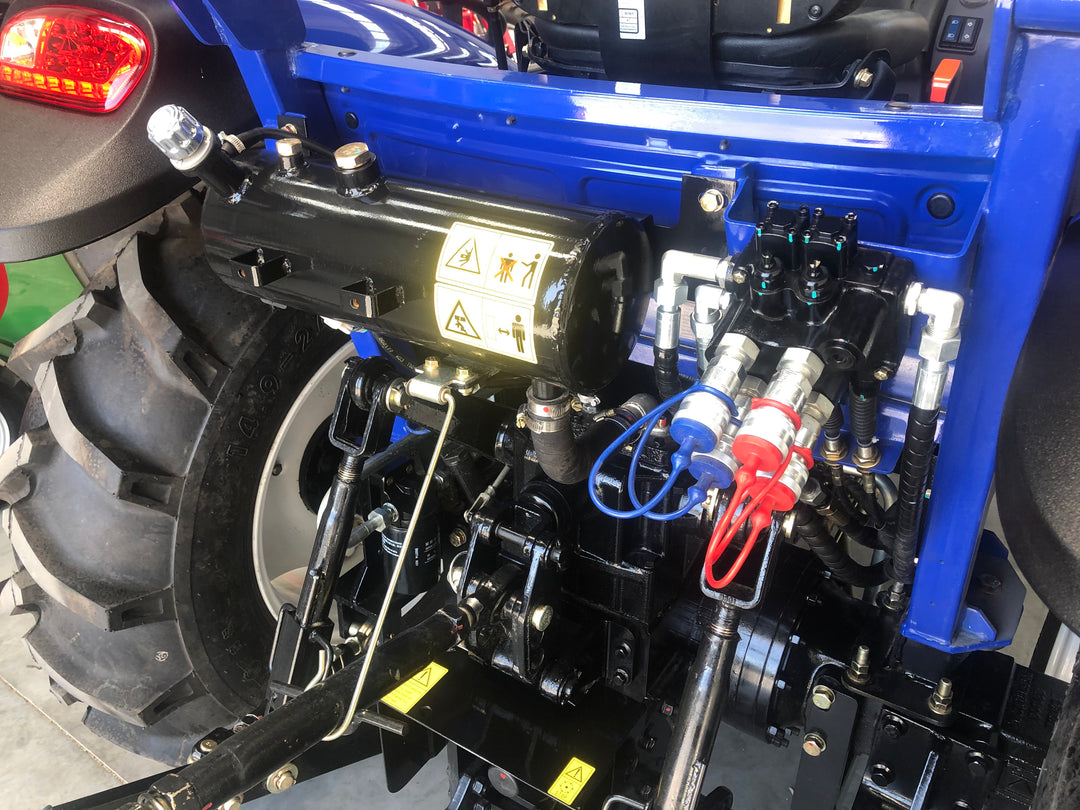

No.of Standard Remote Valve's Ports (Rear)


2 Sets

2 Sets

Towing Capacity (based on 7.5km/h)

Maximum Towing Power

KN

>13.2

>13.2

Drive Train

Transmission




Main Gear Shift x Range Gear Shift


4x3 range

4x3 range

No. of Speeds


F12+R12

F12+R12

Shuttle Type


mechanical shuttle

mechanical shuttle

Brake Type


wet/double disc per side

wet/double disc per side

Main Clutch Type


Dry with Springs

Dry with Springs

Main Clutch Diameter

mm

254 / 11 Inch

254mm / 11 Inch

Mechanical Differential Lock


yes

yes

Front Wheel Drive System


4WD

4WD

Traveling Speeds

Forward

km/h

2.37-38.46

2.37-38.46

Reverse

km/h

2.07-33.71

2.07-33.71

Other features

Tilt Steering


yes

yes

Flat Deck Type


flat floor

flat floor

Panel Type


suspension

suspension

Dimensions

Overall Length (With 3 Point & front Weight)

mm

4136

4136

Overall Width(Minimum Tread)

mm

1870

1870

Tread Width Front 4wd

mm

1250

1250

Tread Width Rear

mm

1300

1300

Overall Height(With ROPS)

mm

-

2657

Overall Height (Top of Cabin)

mm

2822

-

Wheel Base

mm

1990

1990

Ground(Crop) Clearance

mm

310

310

Turning Radius(w/brake)

mm

4300/3800

4300/3800

Weight with ROPS Without Loader

kg

-

2320

Weight with CABIN Without Loader

kg

2525

-

TireIRE Size

AG. Tire




Front


8.3-20 AG Or 280\70R20 Radial

8.3-20 AG Or 280\70R20 Radial

Rear


14.9-24 AG or 380\85R24 Radial

14.9-24 AG or 380\85R24 Radial

Turf Tire




Front


31X9.5-16

31X9.5-16

Rear


43.5X13-20

43.5X13-20

 Specs are correct at time of posting but subject to change.
